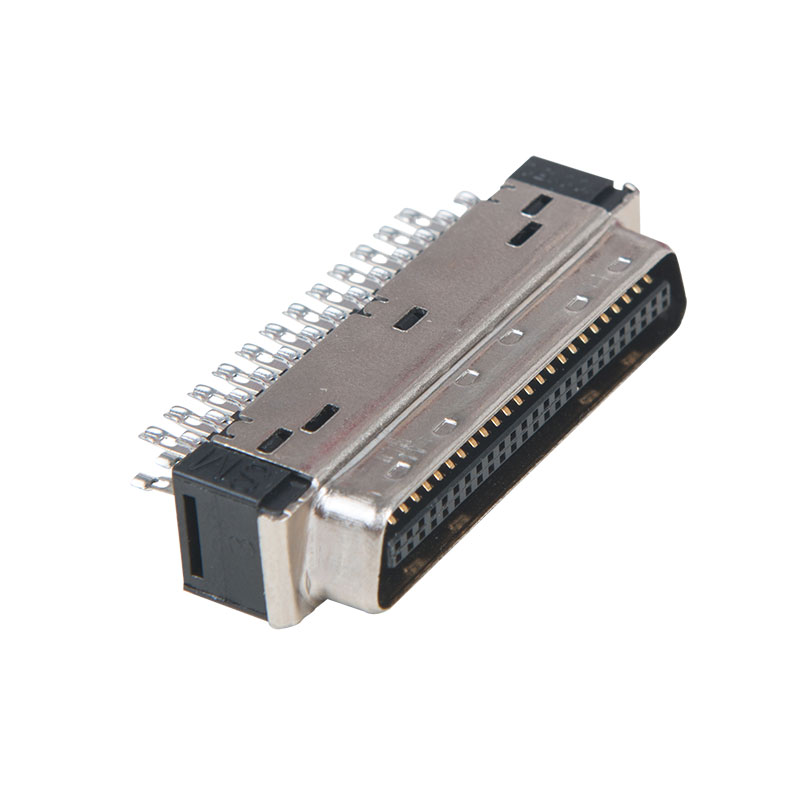

LC-SCSI MDR REC R/A 50C

Cixi Lechuan Import and Export Co., Ltd2017-03-27


Material
Insulator:Glass filled PBT UL94V-0,Black
Contact Plating:Phosphor Bronze,T=0.3,Gold plating over Nickel
Supporting Part:Zinc Alloy,Nickle plating
Housing:SPCC, Nickle plating
fastener:Copper Alloy,Tin plating
Marking: Logo and Part Number
Electrical
Contact Resistance:30MΩmax ,at DC 100mA
Insulator Resistance: 500MΩmin ,at 500V DC
Withstanding Voltage: 500V AC/rm 50Hz for 1 minute
Current Rating: 1 Amp AC/DC
Environment
Operating Temperature:-40℃~+105℃
Soldering temperature:265℃max for 6sec.max
